3000W 4000W 5000W Pure Sine Wave Inverter DC 12V 24V 48V 60V 72V to AC 110V 220V Power Solar Car Inverters Doule Digital Display

Details description
3000W 4000W 5000W Pure Sine Wave Inverter DC 12V 24V 48V 60V 72V to AC 110V 220V Power Solar Car Inverters Doule Digital Display Main Specifications Type: Pure Sine Wave Inverter Output voltage waveform: Pure sine wave Peak Power: 2000W/3000W/4000W/5000W Continuous power:2000W/1500W/2000W/2500W Output voltage:110V/120V/20V/230V/240V Input voltage: 12V/24V/48V/60V/72V Output frequency: 50Hz or 60Hz Socket: Universal(Commonly used in sockets in all countries) Conversion Efficiency: >90% Total Harmonic Distortion:≤3% Working temperature:-5~+50℃ Storagetemperature:-20~+70℃ Cooling method:Intelligent temperature controlled air cooling Over Thermal:Shut Off Output Automatically Input low voltage protection : 20Vdc±0.3V Input high voltage protection: 30Vdc±0.3V Over temperature protect: 80°±5° Start :Soft Start Fuses:Short Circuit No-load current：Rated power:300W/500W(0.3A), 1000W(0.6A),1500W(0.7A),2000W(0.7A),3000W/4000W/5000W/6000W(1.0A) Over load protection:Rated power 500W(550W±50W),1000W(1100W±50W),1500W(1650W±50W),2000W(2200±50W),3000W(3300±50W),4000W(4000±50W),5000W(5000±50W),6000W(6000±50W) Protection:over-current protection, battery-reversal protection(external false), low battery warning, power-om protection Power:0%-100%state(Continuous Running)-120% 10s-150% 1s Features ●Sine wave output (THD<3%) ●All-digital control display ●Output up to 92% as maximum efficiency ●Products with the CE/FCC/LVD/ROSE norms ●Full Intelligent display screen of working state ●Low battery capacity warning ●One-year free product maintenance and warranty ●This series of off-grid inverters are controlled by digitized CPU, and it is true sine wave DC/AC,which use the battery pack to generate energy and convert it into AC voltage output. ●The output is sine wave, and it can work usually under 0%-100% of the load condition. ●Its surge power can increase more than double, which could apply to different types of load, such as inductive load, capacitive load, etc. ●The application range includes computers, communications, yachts, recreational vehicles,family recreational devices, motors, electric tools, industrial-control devices, video players, household appliances, etc. 12-24V 1 x Inverter 2x Terminal Connector 1xUser Manual Package included: 48-96V 1 x Inverter 2x Crimper 1x Charging Cable 1xUser Manual

Details description

3000W 4000W 5000W Pure Sine Wave Inverter DC 12V 24V 48V 60V 72V to AC 110V 220V Power Solar Car Inverters Doule Digital Display

Main Specifications

Type: Pure Sine Wave Inverter

Output voltage waveform: Pure sine wave

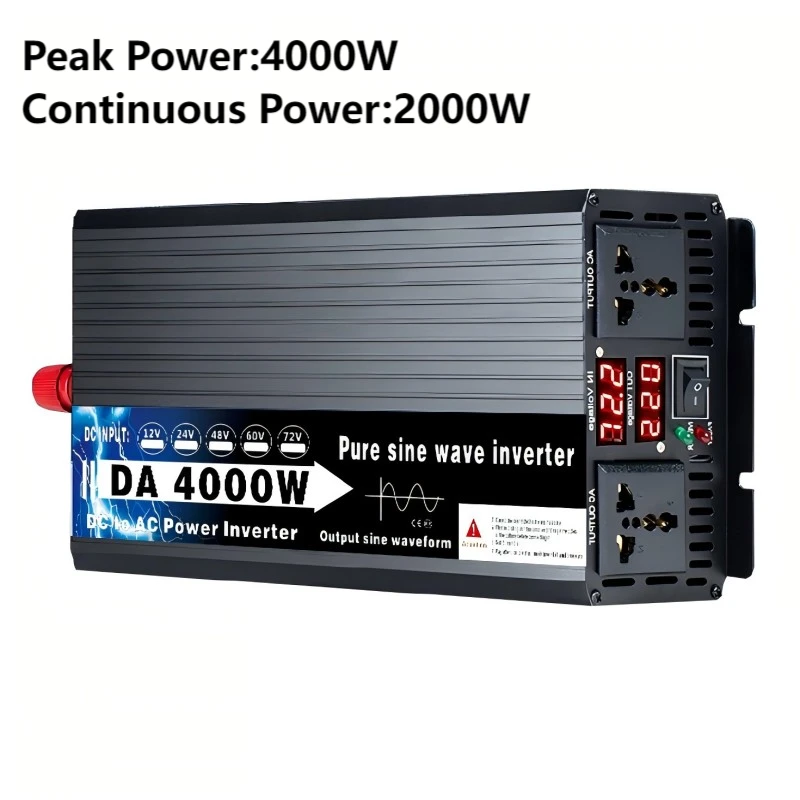

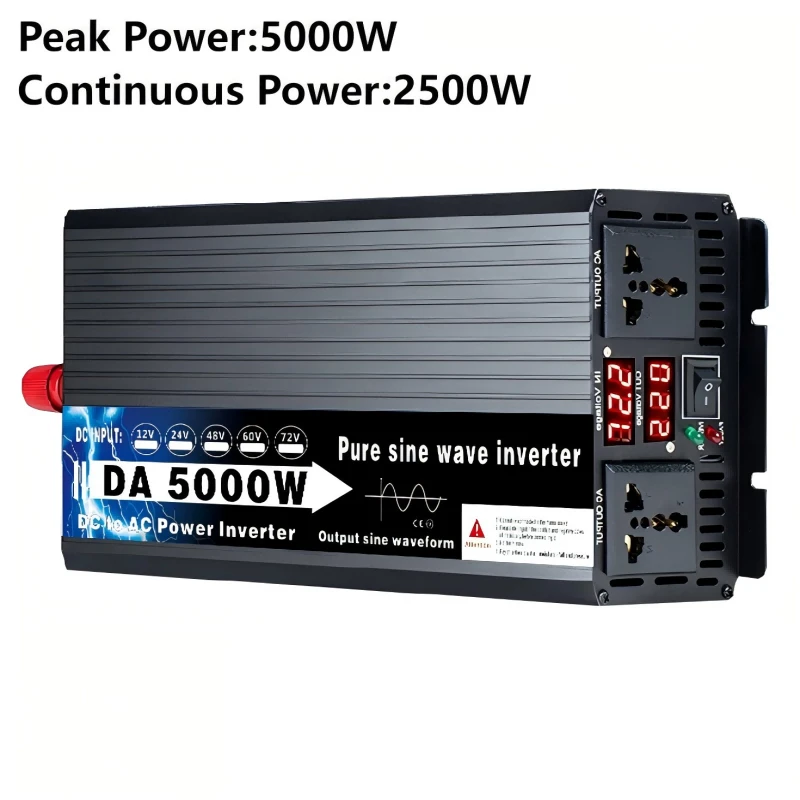

Peak Power: 2000W/3000W/4000W/5000W

Continuous power:2000W/1500W/2000W/2500W

Output voltage:110V/120V/20V/230V/240V

Input voltage: 12V/24V/48V/60V/72V

Output frequency: 50Hz or 60Hz

Socket: Universal(Commonly used in sockets in all countries)

Conversion Efficiency: >90%

Total Harmonic Distortion:≤3%

Working temperature:-5~+50℃

Storagetemperature:-20~+70℃

Cooling method:Intelligent temperature controlled air cooling

Over Thermal:Shut Off Output Automatically

Input low voltage protection : 20Vdc±0.3V

Input high voltage protection: 30Vdc±0.3V

Over temperature protect: 80°±5°

Start :Soft Start

Fuses:Short Circuit

No-load current：Rated power:300W/500W(0.3A), 1000W(0.6A),1500W(0.7A),2000W(0.7A),3000W/4000W/5000W/6000W(1.0A)

Over load protection:Rated power 500W(550W±50W),1000W(1100W±50W),1500W(1650W±50W),2000W(2200±50W),3000W(3300±50W),4000W(4000±50W),5000W(5000±50W),6000W(6000±50W)

Protection:over-current protection, battery-reversal protection(external false), low battery warning, power-om protection

Power:0%-100%state(Continuous Running)-120% 10s-150% 1s

Features

●Sine wave output (THD<3%)

●All-digital control display

●Output up to 92% as maximum efficiency

●Products with the CE/FCC/LVD/ROSE norms

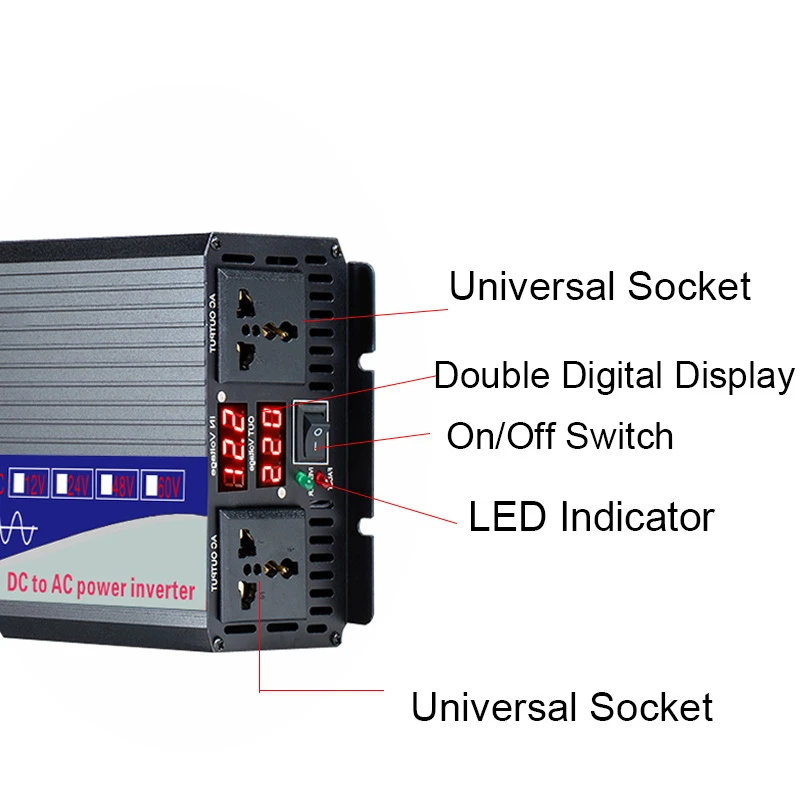

●Full Intelligent display screen of working state

●Low battery capacity warning

●One-year free product maintenance and warranty

●This series of off-grid inverters are controlled by digitized CPU, and it is true sine wave

DC/AC,which use the battery pack to generate energy and convert it into AC voltage output.

●The output is sine wave, and it can work usually under 0%-100% of the load condition.

●Its surge power can increase more than double, which could apply to different types

of load, such as inductive load, capacitive load, etc.

●The application range includes computers, communications, yachts, recreational vehicles,family recreational devices, motors, electric tools, industrial-control devices, video players, household appliances, etc.

12-24V
